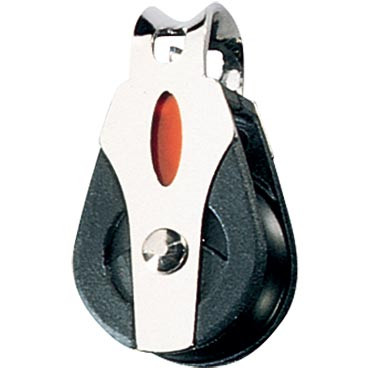

Series 20 - Single - Loop Head

FEATURES
Exceptionally high working loads
Lightweight
Suitable for both rope or wire

PRODUCT INFORMATION
Ideal for high load applications. Wear resistant sheave material, in lightweight, self lubricating polymer, is suitable for use with rope or wire.Can be fitted with a shackle in either of two planes to allow correct alignment of the block.
APPLICATIONS
Dinghy control lines
Dinghy vangs
Cunninghams
Traveller controls
Halyards
Backstays

MATERIALS
Nylatron® sheave
Grade 316 stainless steel load strap and head fitting
Impact and U.V. resistant, fibre reinforced Nylon cheeks

Sheave Ø 20 mm
Max. Rope Ø 6 mm
Max. Cable Ø 3 mm
Pin Ø - mm
M.W.L. 275 kg
B. L. 550 kg
Weight 14 g
