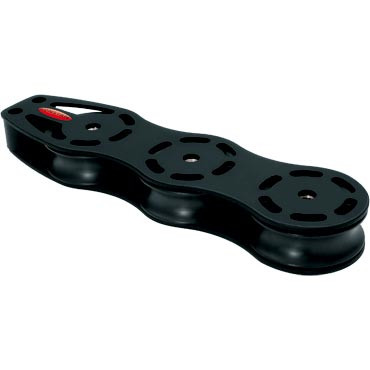

Series 60 AP Deck Organiser - 3 Sheave

FEATURES
Lightweight design with cheek cut outs for easy bearing maintenance
Through hub mounting for maximum strength
All-purpose bearing system provides maximum static load capacity

PRODUCT INFORMATION
Deck organisers are an effective means of deflecting halyards and other control lines to winches, stoppers and cleats. Sheaves are made from impact resistant Acetal. The deck organisers have alloy cheeks. All sizes can be stacked to create double versions - MWL of the top sheaves must not exceed 50% of the total block load rating.Mounts with 5 x 8mm (5/16”) fasteners, not supplied Length - 234mm (9 7/32") Hole centres at 70mm (2 3/4")

APPLICATIONS
Line deflection on larger yachts (depending on load and angle of deflection)
Halyard and control line deflection on boats to 14m (46ft)

MATERIALS
Cheek plates: Anodised aluminium
U.V. stabilised Acetal sheaves
Grade 316 stainless steel hubs

Sheave Ø 60 mm
Max. Rope Ø 14 mm
Max. Cable Ø - mm
Fastener Ø 8.0 mm
M.W.L. 1000 kg
B. L. 2000 kg
Weight 392 g
